₹233,640.00
This instrument is widely used in petroleum, chemical, pharmaceutical, sugar, refining, research and food industries. This spectrophotometer also has wide scope of use in related colleges, universities & scientific research institutions for meaning the photometric value of samples. Smart device with built in colorful screen. Graph & data is directly visible on the screen.
SALIENT FEATURES:
• 7 Inches color LCD and window graphic interface.
• Memory about 1 GB for saving test data and Different curves.
• Supports external storage through USB & SD card.
• Socket type deuterium and tungsten lamp can make lamp switching without optic debugging and easy to be replaced.
• Automatic Temperature Compensation on (ATC) ensures high accuracy.
Standard Accessories:
• Instruction manual
• Glass/ quartz cuvette
• Dust cover
| Model | UV-1950 |
| Make | Galaxy |
| Bandwidth | 1 nm |
| Cell holder | Sample and reference cuvette holder (both 10 mm) |
| Optical system | Double beam (1200 lines/mm grating) |
| Wavelength Range | 190-1100 nm |
| Wavelength Accuracy | ± 0.3 nm |
| Wavelength Repeatability | ± 0.1 nm |
| Scanning Speed | Fast, Medium, slow (Max. 3000 nm/min) |
| Photometric Range | -0.3~ 3A, 0~200%T, 0~9999C |
| Photometric Accuracy (T) | ± 0.2%T (0-100%) |
| Photometric Accuracy(A) | ≤±0.002A(0~0.5A), ≤±0.004A(0.5~1A), ≤±0.006A (>2.0) |
| Photometric Repeatability | ≤0.15% T (0-100%), 0.001A (0-0.5A), 0.002A (0.5-1 A) |
| Stability | ± 0.0003 A/h @500 nm |
| Baseline Flatness & noise | ±0.0010A, 0.0005A @500nm |
| Stray Light | <0.03 %T @220 nm, 360 nm |
| Data Output | USB / RS232 |
| Printer Port | Parallel Port |
| Display | 7″ Colour LCD |
| Lamps | D2 and Tungsten Halogen lamp |
| Detector | Silicon Photodiode |
| Power supply | AC 220 V/ 50 HZ |
| Dimension & Weight | 590 x 475 x 250 mm & 20 kg |
| Optional | 8-cell holder, peltier/ sipper system, reflection accessories, 21 CFR software |

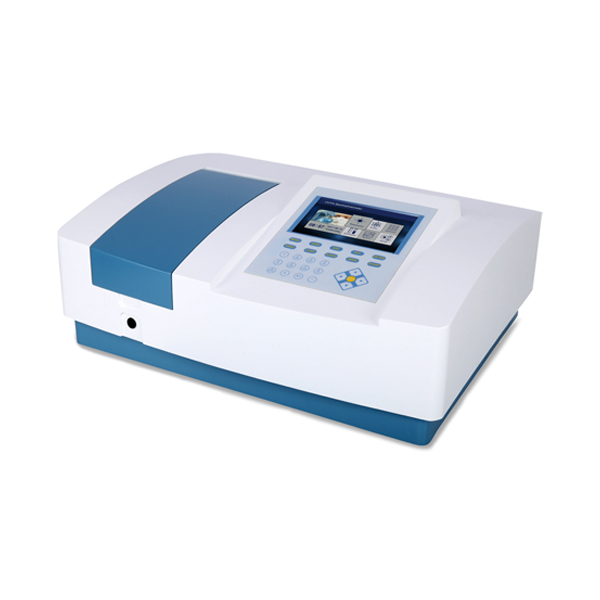

Galaxy Double Beam Spectrophotometer UV-1950Download PDF
