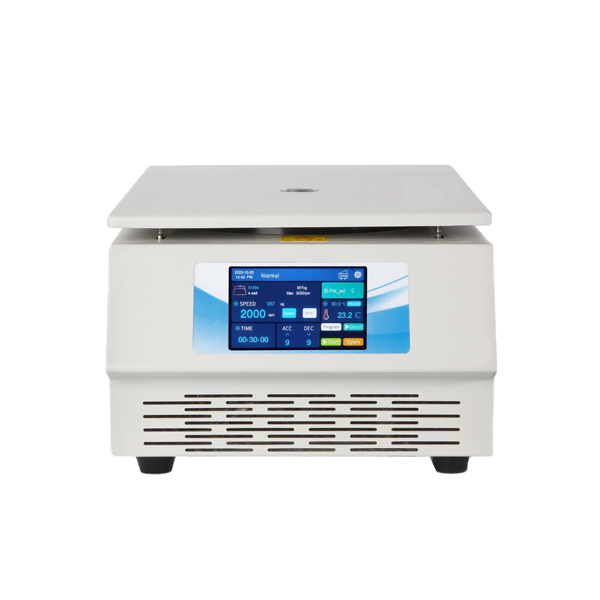

High Speed Refrigerated Centrifuge RC-18K

Category:

Description

SALIENT FEATURES:
• Program Storage: Store up to 99 customizable programs, each with user-defined steps.
• Intuitive Touch Display: User-friendly interface displaying real-time temperature, speed, time, RCF, and rotor information.
• High-Performance Motor: Brushless high-torque motor ensures rapid acceleration and deceleration.
• Robust Construction: Built with high-strength T45 steel for enhanced durability and safety.
• Pre-Set Cooling: Automatically cools the chamber to a specified temperature before or after a run.
• Versatile Rotor Options: Compatible with multiple rotor types to suit various applications.
• Ultra-Fast Cooling: Delivers rapid temperature reduction for efficient operation.
• Nano-Ceramic Coated Chamber: Provides superior anti-corrosion and rust resistance.
• Effortless Rotor Handling: Quick and easy rotor loading without directional markings, thanks to a specialized taper sleeve and automatic detection system.
• Automatic Rotor Detection: Ensures precise identification of the rotor, enhancing safety and operational efficiency.



Specifications

Model  RC-18K
Make Galaxy
Max. Speed 18000 RPM
Max RCF 27100 g
Max Capacity 6 x 100 ml
Time Range 1s99min 59 sec
1 min 99h 59 min –
RPM/RCF Convert Yes
Noise (dB) ≤ 60
Temperature -20°C to 40°C
Acc/Dec 10 kinds
Speed Accuracy ±20 RPM
Temp. Accuracy ±1°C
Supported Rotor Type Angle, Swing, Plate
Standard Rotor 24 x 1.5/2 ml
Power Consumption 1200 W
Refrigerant R290
Power Supply 220v / 50 Hz
Dimensions & Weight 63 x 47 x 34 cm, 62 kgs

Downloads

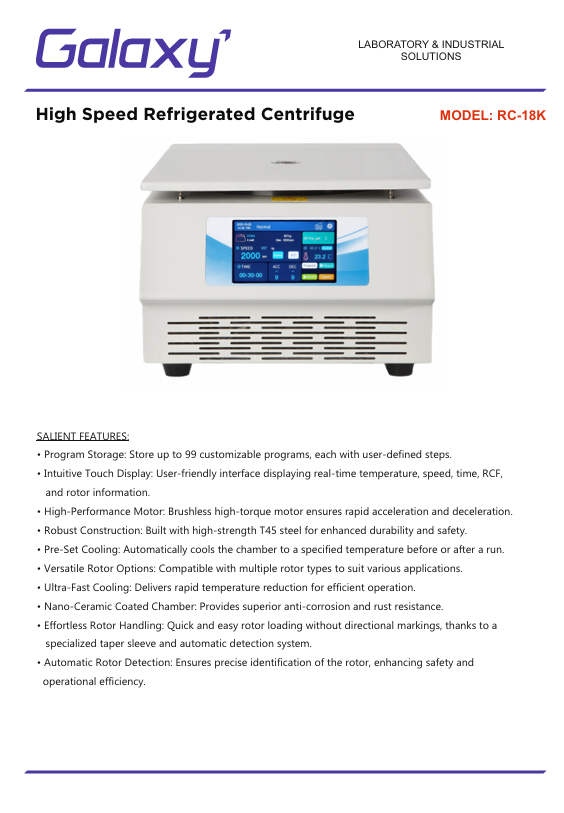

Catalog High Speed Refrigerated Centrifuge RC-18KDownload PDF
